■ Overview

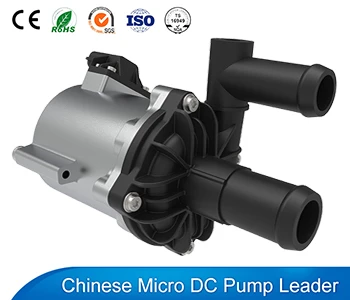

12 Volt Coolant Booster Pump VP80C is a 12v 24v EV circulation booster water pump that built by a bldc motor , so it with small body, high efficiency, working life span is much longer than that of mechanical water pump’s. Its working performance is max head 9m, max flow 46L/min, which can well boost and transfer the coolant in the engine, battery cooling circulation system to dissipate heat for them to maintain the normal operating temperature of the engine or battery of electric vehicle.
■ Parameter
| Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| 13.5 | 8~20 | 6 | 9 | 46 | 81 | ≤50 |
| 24 | 12~30 | 3.7 | 9 | 46 | 89 | ≤50 |
■ Specifications
| 1 | Max Flow Rate | 46L/MIN |
| 2 | Max Static Lift | 9M |
| 3 | Rated Voltage | 13.5V/24V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | N |
| 6 | Liquid Temperature | -40°-125°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | Brushless DC motor |
| 9 | Ambient Temperature | -40°-120°C |
| 10 | Media | Antifreeze/Pure Water |
| 11 | Waterproof Class | IP67 |
| 12 | Use Place | Vehicle/Indoor |
| 13 | Working Voltage Range | 8V-20V,12V-30V |
| 14 | Power Consumption | 81W/89W |
| 15 | Noise Class form 1M | 50dB /(A) |
| 16 | Ideal Life Time | 20,000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | 22 mm |
| 19 | OD of Outlet | 22 mm |
| 20 | Dimension | 156*127*106 mm |
| 21 | Weight | 0.9 kg |
| 22 | Power Supply | DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
