■ Overview

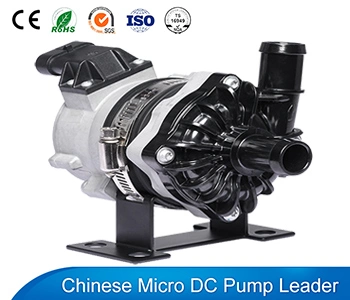

12V Electric Water Pump for Car VP80E is a 12v 24v circulation car electric water pump which built by a bldc motor. Its main function is to circulate coolant in the automotive engine, EV battery, motor controller’s cooling system to dissipate heat. VP80E electric water pump is designed to complement or replace the engine’s mechanical water pump and for ev vehicle’s battery cooling. Due to its long working life span, high efficiency, various function, easy to control working speed, its widely used in EV, car, aircraft, motorcycle, boat, bus, EV charging cooling circulation system, etc.
12V Electric Water Pump for Car Features:
■ Parameter
| Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| 13.5 | 8~20 | 6 | 10 | 50 | 81 | ≤48 |
| 13.5 | 8~20 | 8 | 14 | 55 | 108 | ≤50 |
| 24 | 12~32 | 3.7 | 10 | 50 | 88 | ≤48 | 24 | 12~32 | 4.5 | 14 | 55 | 108 | ≤50 |
| 220 | AC198-244 | AC1.0 | 12 | 58 | 120 | ≤50 |
■ Specifications
| 1 | Max Flow Rate | 50L/MIN,55L/MIN,58L/MIN |
| 2 | Max Static Lift | 10 M/12M/14M |
| 3 | Rated Voltage | 13.5V/24V/220V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | N |
| 6 | Liquid Temperature | -40°-120°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | Brushless DC motor |
| 9 | Ambient Temperature | -40°-125°C |
| 10 | Media | Antifreeze |
| 11 | Waterproof Class | IP67 |
| 12 | Use Place | Vehicle/Indoor |
| 13 | Working Voltage Range | 8V-20V,12V-32V,AC198-244V |
| 14 | Power Consumption | 81W/88W/108W/120W |
| 15 | Noise Class form 1M | 50dB /(A) |
| 16 | Ideal Life Time | >30000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | 25 mm |
| 19 | OD of Outlet | 25 mm |
| 20 | Dimension | 131*112*80mm |
| 21 | Weight | 0.97 kg |
| 22 | Power Supply | AC,DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
