■ Overview

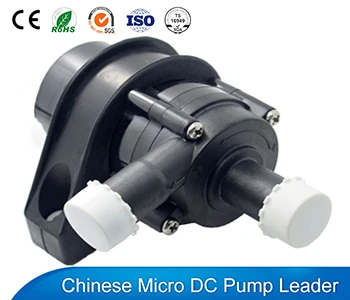

3 Wheel Motorcycle Electric Water Coolant Pump VP50G is a 12V circulation water pump motor, it is used for cooling three wheel motorcycle, car, vehicle. VP50G pump is built by a more than 30,000 hours long life working span brushless dc motor, it with working performance max head 3m, max flow 25L/min. VP50G pump is suitable for cooling small electric vehicles such as three-wheeled motorcycles, and is compatible with hybrid and pure electric models. It can be adapted to different models of three-wheeled vehicles by adjusting the water pump’s inlet and outlet. The product provides a 2-year warranty and after-sales support, and is suitable for long-term operation scenarios of motorcycles.
■ Parameter
| Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| 12 | 8~20 | 1.4 | 3 | 25 | 17 | ≤40 |
| 24 | 12~32 | 0.7 | 3 | 25 | 17 | ≤40 |
■ Specifications
| 1 | Max Flow Rate | 25L/MIN |
| 2 | Max Static Lift | 3M |
| 3 | Rated Voltage | 12V/24V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | N |
| 6 | Liquid Temperature | -40°-125°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | Brushless DC motor |
| 9 | Ambient Temperature | -40°-125°C |
| 10 | Media | Antifreeze |
| 11 | Waterproof Class | IP67 |
| 12 | Use Place | Vehicle/Indoor |
| 13 | Working Voltage Range | 8V-20V,12V-32V |
| 14 | Power Consumption | 17W |
| 15 | Noise Class form 1M | <40dB /(A) |
| 16 | Ideal Life Time | >20000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | 18 mm |
| 19 | OD of Outlet | 18 mm |
| 20 | Dimension | 111.8*87.4*81.5mm |
| 21 | Weight | 0.36kg |
| 22 | Power Supply | DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
