■ Overview

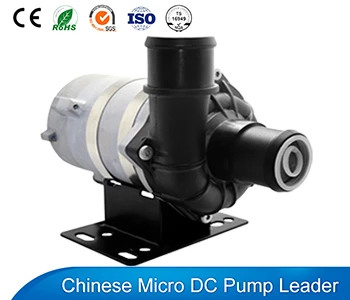

Electric Water Pump for Car Engine VP90B is a 24V electric circulation coolant pump, it widely used for EV, car, bus’s engine, battery storage power station cooling system. VP90B is driven by a brushless dc motor which long working life span, and with max head 11m, max flow 165L/min, working noise lower than 60dB. Its main function is to circulate the coolant to take way the heat and cooling the engine. It has various speed adjust way, you can choose either PWM or CAN speed adjust function to adjust its working performance.
■ Parameter
| Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| 24 | 12~30 | 6.3 | 6 | 150 | 150 | ≤50 |
| 24 | 12~30 | 8 | 9 | 150 | 200 | ≤50 |
| 24 | 12~30 | 11 | 11 | 165 | 260 | ≤50 |
■ Specifications
| 1 | Max Flow Rate | 150L/MIN,165L/MIN |
| 2 | Max Static Lift | 6M,9M,11M |
| 3 | Rated Voltage | 24V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | N |
| 6 | Liquid Temperature | -40°-125°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | BLDC motor |
| 9 | Ambient Temperature | -40°-120°C |
| 10 | Media | Antifreeze/Pure Water |
| 11 | Waterproof Class | IP67 |
| 12 | Use Place | Vehicle/Indoor |
| 13 | Working Voltage Range | 12V-30V |
| 14 | Power Consumption | 150W,200W,260W |
| 15 | Noise Class form 1M | 50dB /(A) |
| 16 | Ideal Life Time | 20,000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | 38 mm |
| 19 | OD of Outlet | 38 mm |
| 20 | Dimension | 191*119*165.8 mm |
| 21 | Weight | 2.55 kg |
| 22 | Power Supply | DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
