■ Overview

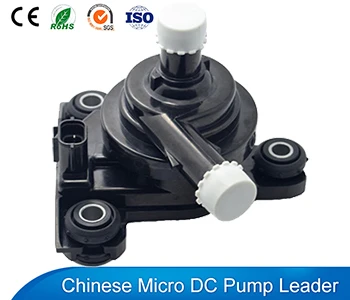

Engine Auxiliary Water Pump VP50P is a 12V 24V automotive electric coolant pump that plays an important rule in the vehicle’s engine cooling system. It is mainly used to circulating water flow of the auxiliary cooling system to ensure that the engine can maintain proper cooling effect under various operating conditions. VP50P pump with max flow 4.5m, max flow 25L/min, working life span more than 30,000 hours, working noise level lower than 40dB. Its widely used for car, vehicle, motorcycle, three wheeler, etc.
■ Parameter
| Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| 12 | 8~20 | 1.8 | 4.5 | 25 | 22 | <4048 |
■ Specifications
| 1 | Max Flow Rate | 25L/MIN |
| 2 | Max Static Lift | 4.5M |
| 3 | Rated Voltage | 12V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | N |
| 6 | Liquid Temperature | -40°-125°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | Brushless DC motor |
| 9 | Ambient Temperature | -40°-125°C |
| 10 | Media | Antifreeze |
| 11 | Waterproof Class | IP67 |
| 12 | Use Place | Vehicle/Indoor |
| 13 | Working Voltage Range | 8V-20V |
| 14 | Power Consumption | 22W |
| 15 | Noise Class form 1M | 48dB /(A) |
| 16 | Ideal Life Time | >30000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | 17 mm |
| 19 | OD of Outlet | 17 mm |

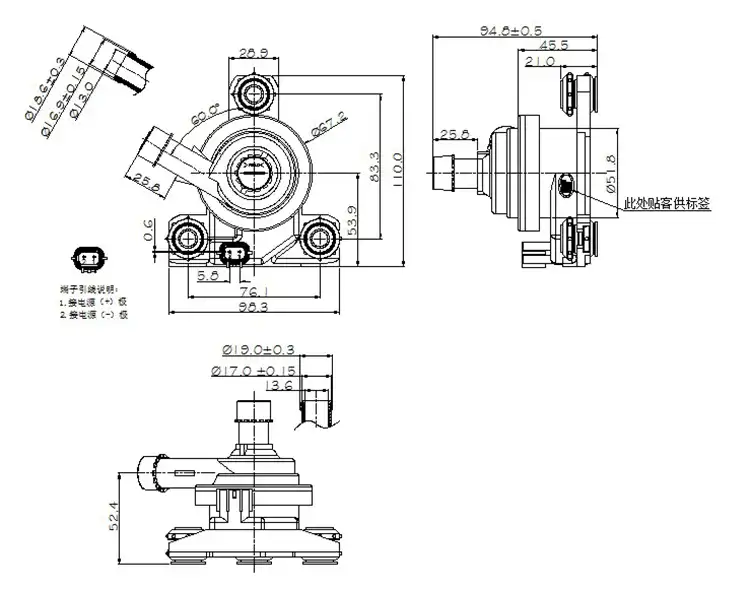

| 20 | Dimension | 90*111*52mm |
| 21 | Weight | 0.38kg |
| 22 | Power Supply | DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
